ARAD Octave – Ultrasonic

$0.00

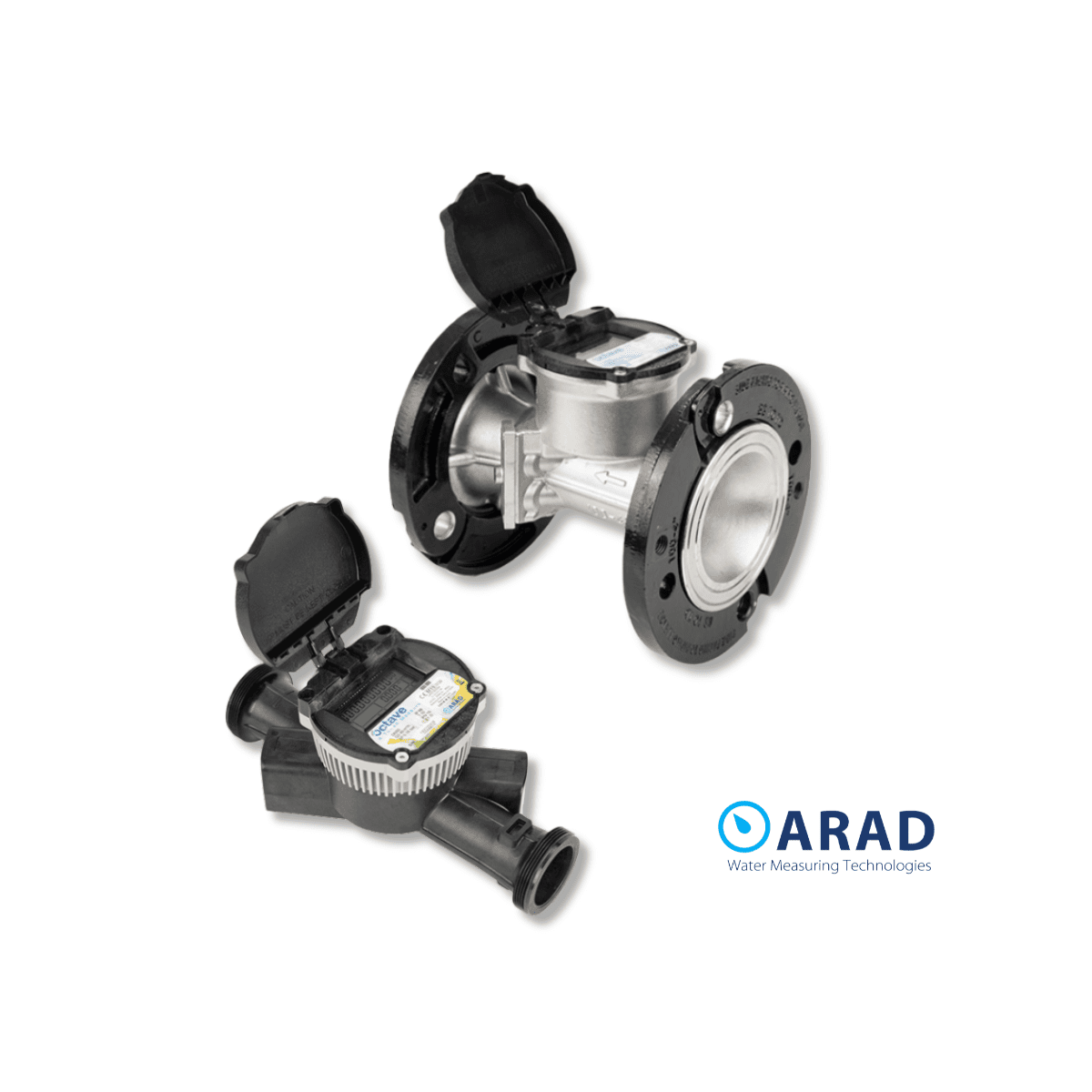

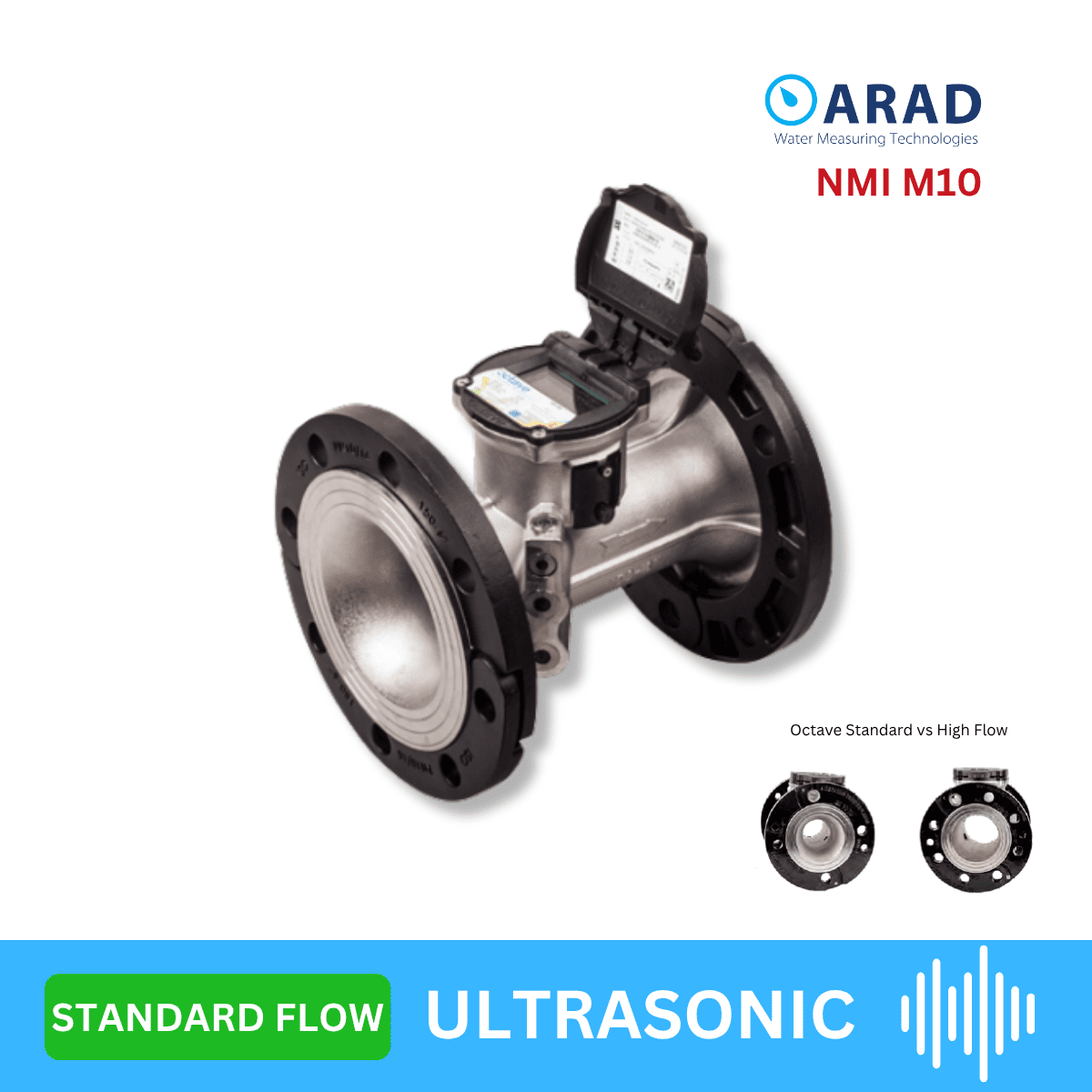

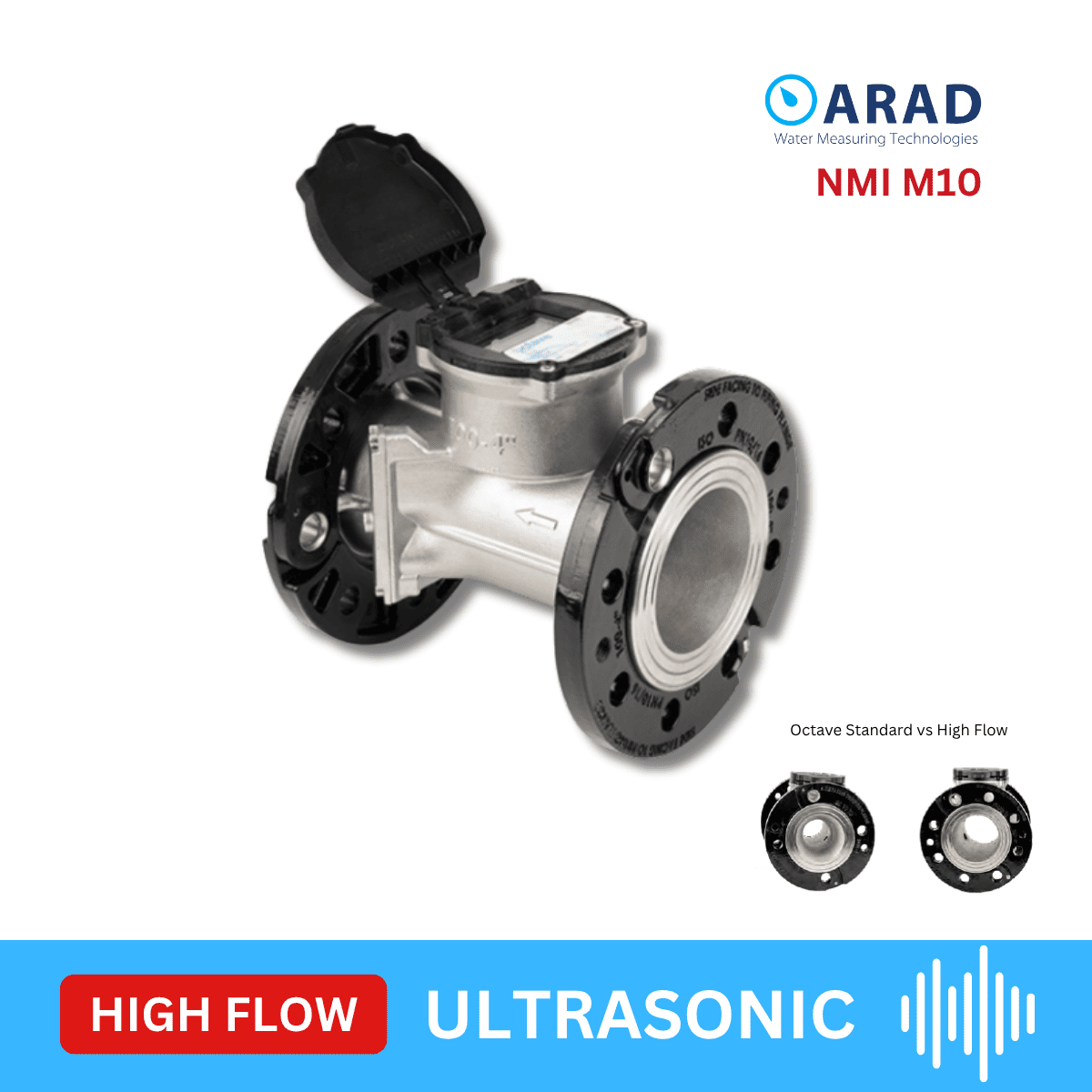

The Arad Octave Ultrasonic water meter is a revolutionary, precise and ultra reliable ultrasonic bulk water meter with no moving parts.
With superior hydraulic and batteries that last more than 15 years, the Octave is today’s best choice for bulk meters and a must have for installations requiring pattern approval.

Only 40mm and 50mm sizes have Watermark

Uses

Utilities, Waterworks, Industrial and Agricultural applications

Pulse Kit included

Specifications

  • Pattern Approved for Murray Darling Basin
  • AS4747 accredited and NMI pattern approved
  • Excellent long-term stability and reliability
  • Rugged mechanical design - Submersible (IP68)
  • Bi-directional - including bi-directional outputs (digital and analog)
  • Flexible data formats including flow directions, flow rates and volumes
  • AMR and cellular networks ready with alerts and statistic features
  • Multiline LCD Programmable Display (units and outputs resolution)
  • EMI / RFI Protection

Digital Display

The vacuum sealed (IP68) digital display is equipped with the following:

  • Forward & reverse flow notification symbol
  • 12 digits accumulation volume
  • Programmable decimal point for high resolution
  • 4 digits for flow rate with automatic floating decimal point
  • Programmable accumulation units available
  • Programmable flow rate units available
  • Alarm display for low battery and fault measuring
  • The digital display is identical for all sizes or models and it can be programmed as ordered by you, the customer.

The transparent LCD digital display glass lens is made of moulded
heat treated 6 mm / 1/4” glass to ensure against scratching and
breakage. The Serial number is permanently stamped in the electronic
digital display for easy identification.

For replacement pulse kits click here



Part Number Description Size Quantity
WM500OCTSS ARAD Octave Ultrasonic 50mm

WM650OCTSS ARAD Octave Ultra Sonic 65mm

WM800OCTSS ARAD Octave Ultrasonic 80mm

WM1000OCTSS ARAD Octave Ultrasonic 100mm

WM1500OCTSS ARAD Octave Ultrasonic 150mm

Approved for Murray Darling Basin

NSW Water
